RAYMARINE - MICRONET RACE MASTER SYSTEM COMPLETE WITH A SOLAR PANEL

The Race Master has been adopted by the most successful sailors in every part of the world, such as the compass tactic in the race for excellence. Combines the indication of the bow with a unique and instinctive indicator of good and poor.

The Race Master puts the information of the compass tactic in your field of vision. The fact that all this is obtainable without any connection and with a few minutes of setup, the fact s that the Race Master is now established worldwide and has become an indispensable tool for all sailors who aspire seriously to win.

T075 - Tacktick "Race Master System"

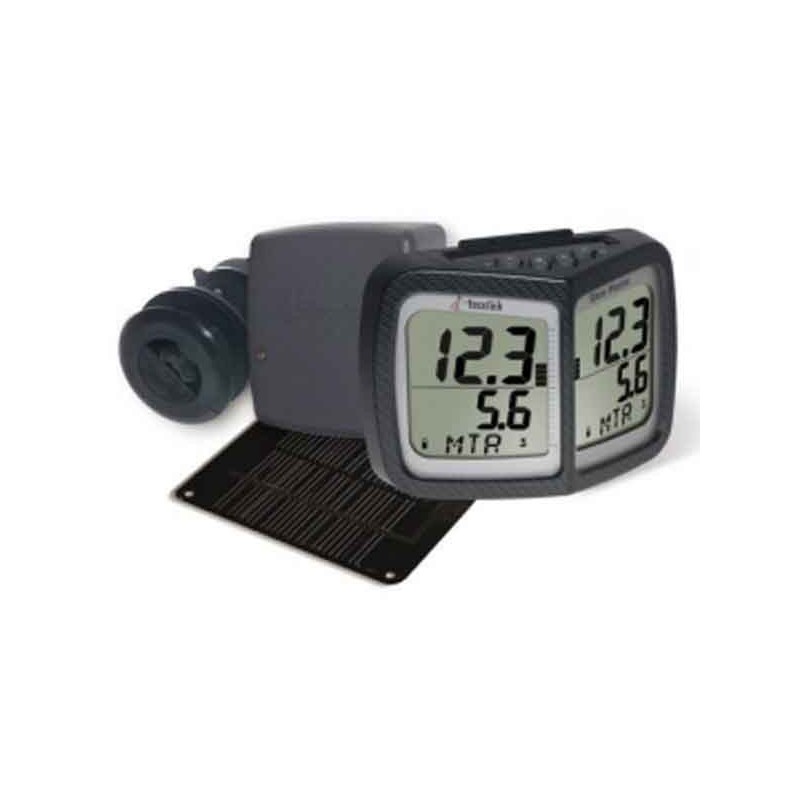

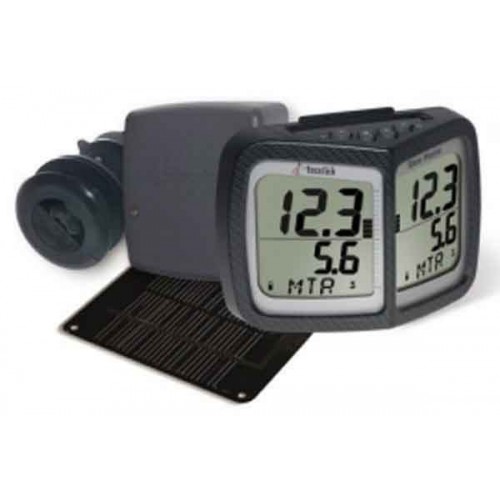

The package contains:

Compass, transmitter from hull T121, triducer T910, the solar panel-T138

Encompassing all the critical information of the race in a single tool, the Race Master System redefines the parameters of the digital electronic instrumentation from the race.

With its large dual-display offers a clear view of the data in a wide field of vision, and the unique solar power system the Tacktick ensures the lightness, the ease of installation with the absolute water-resistance.

The bow appears on the top line, while the speed appears on the bottom with a definition of 0.01 knots.

The depth is indicated using a graphic bar on the side, with the instant numerical indication and alarm in case of low depths.

Main features

Solar powered with 300 hours autonomy

Backlight with automatic shut-off with daylight

Depth alarm

Battery level indicator

Full calibration

Absolutely waterproof (submersible up to 10 m)

Compatible with many transducers, water depth and speed

Data displayed: heading, wind shifts, speed, depth, distance, distance, race time

Technical characteristics

Character height: 28 mm upper row, and 20 mm bottom line

Backlighting: 3 levels with automatic switch off sunlight

Angle of pitch and roll: +/-30°

Mounting plane: vertical

Adjustment: full adjustment and automatic

Size bow: 1°

Speed resolution of 0.01 knots

Depth resolution 0,1 m (0,3 ft)

Depth range: from 0.8 m to 80 m

Timer: Resolution 1", 1 to 40 min

Alarms, countdown: an audible Warning of departure

Size: 165 x 120 x 55 mm

Battery charging: solar Energy

Cables and transducers: N/A

Battery life: 300 hours (20 with backlighting) - automatic charging solar energy

Weight: 640 g more than 300 g for the transducer
